The efficient and secure vertical movement of people and things in a variety of contexts, including residential, commercial, industrial, and public places, is made possible by lifts and lifting equipment, which is a critical component of contemporary infrastructure. These devices are intended to lift large objects, move people, and improve accessibility within structures. The precise control, safety features, and dependable performance of lifts and lifting equipment are made possible by a sophisticated network of control systems, sensors, and cables. The 4 pin M8 cable is one such cable that is often used in lifts and lifting apparatus.

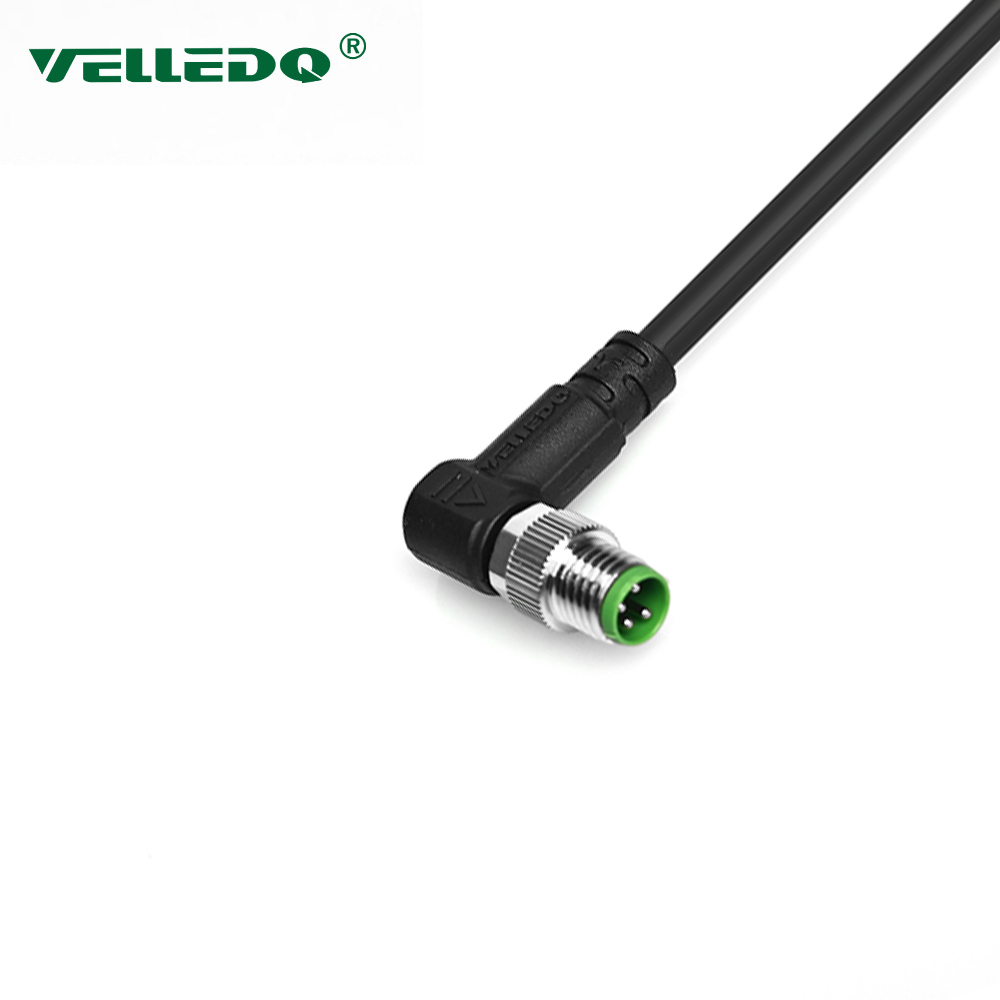

Lifting equipment and lifts both use 4 pin M8 cable.
1.To ensure a safe and precise functioning, 4 pin M8 cable must be used in limit switches and sensors in lifts and lifting equipment. Limit switches and sensors are essential for detecting the presence, movement, and location of items in these systems, which improves overall functioning and safety. These instruments may be connected to the control system through the connections, allowing for real-time monitoring and precise movement control.
To ensure that the lift car or lifting platform stops at the required level and to avoid overtravel or collision with the higher or lower limits, limit switches are used to detect the location of the object. When the vehicle or platform approaches these switches, which are carefully positioned at key intersections along the journey route, they are triggered. The control system is connected to the limit switches through 4 pin M8 cable, which transfer signals indicating the location of the lift or lifting platform. As a result, it is possible to respond quickly and precisely manage the stopping places, assuring passenger safety and averting any potential damage or accidents.
In order to detect the presence of items, sensors like proximity sensors and photoelectric sensors are often utilised in lifts and lifting apparatus. For instance, sensors may identify a person or an impediment in the lifting area or a door opening and initiate safety procedures to avoid mishaps. These sensors give signals to the control system through 4 pin M8 cable, indicating the presence or absence of things. The control system can react appropriately thanks to this real-time input, guaranteeing safe operation and averting any possible risks.
Elevators and lifting equipment use 4 pin M8 cable in limit switches and sensors to provide exact position detection, real-time monitoring and precise control. By allowing the transfer of signals between the devices and the control system, these cables serve a critical role in assuring the safety, effectiveness, and dependability of lifts and lifting equipment. The cable is still a crucial part of maintaining the secure and efficient functioning of these systems even as lifts and lifting equipment continue to improve in terms of technology and safety features.
2. For smooth and dependable operation, 4 pin M8 cable must be used in door control systems in lifts and lifting equipment. In order to ensure both the efficient and safe movement of people and commodities, door control systems are essential. The sensors, actuators, and control panels are only a few of the parts of the door control system that are connected via wires.
The wires allow for the synchronised opening and shutting of lift doors by enabling signal transfer between the control system and the door motors. The door actuator, which is in charge of the doors’ regulated and smooth movement, is connected to the control panel via these wires. The cable guarantee that the doors function in tandem with the lift operations by delivering control signals, giving customers secure and easy access.
Additionally, 4 pin M8 cable link several sensors, including photoelectric and proximity sensors, that are part of the door control system. These sensors pick up on the presence of people and other things near the door opening, including passengers. The cable relay the sensor signals back to the control system, enabling it to decide how to operate the doors. The control system may, for instance, stop the doors from shutting or opening if they are already moving if a sensor detects an impediment and begin the appropriate safety procedures. Accidents are avoided and passenger safety is ensured.
3.In order to provide lighting, floor indication and information display, 4 pin M8 cable must be used in lift car lighting and display panels inside lifts and lifting equipment. Lift vehicle lighting and display panels improve the user experience for passengers, provide helpful information and support the lift system’s overall performance. This connection links the lift car’s LED lights, indicators, and display screens to the control system.
The wires provide the lift car’s lighting system with power and data signals. In order to power the LED lights within the lift and provide a well-lit and welcome atmosphere for users, they supply the required connection. The wires also provide control over the lighting system, allowing for dimmer changes or time- or occupancy-based automated activation.
Additionally, 4 pin M8 connections link the information displays and floor indications on the lift car’s display panels. The data signals that show the current floor, the direction of travel, and other pertinent information for passengers are sent through these wires. The cables provide precise and dependable updating of the display panels, giving passengers real-time information and improving their entire experience.
4 pin M8 cable is the right size for routing in the lift car’s constrained area because of their size. These wires may be neatly incorporated into the lift car’s design to reduce clutter and preserve a polished appearance. The M8 connector guarantees a reliable connection and guards against any unintentional disconnections that can impair the operation of the lights or display.
4. To provide a quick and dependable reaction in dangerous circumstances, 4 pin M8 cable must be used in emergency stop systems in lifts and lifting equipment. Safety is of the utmost importance in these systems, and emergency stop systems provide a vital fail-safe method to cease operations in crises like power outages or other potentially hazardous situations. The connection links the motor controllers, control system, and emergency stop buttons, enabling the quick reaction necessary to guarantee passenger and operator safety.
The emergency stop buttons provide signals to the control system through a 4 pin M8 cable, allowing the quick stoppage of lift or lifting equipment activities. By pressing the emergency stop button, the system comes to a complete stop in case of an emergency, such as a power failure or other dangerous circumstances. The wires provide quick emergency signal transmission, guaranteeing that the command reaches the control system without delay.
The control system connects with the motor controllers and tells them to stop the lift or the lifting activities when it receives the emergency stop signal. These instructions are sent through the cable, enabling quick decision-making to bring the system to a secure halt. The emergency stop mechanism stays responsive and functioning even in the case of vibrations or mechanical stress thanks to the secure connection provided by the M8 connector.
In conclusion, the precise use of 4 pin M8 cable in emergency stop systems for lifts and lifting equipment is essential for guaranteeing a prompt and trustworthy reaction in dangerous circumstances. This cable enables the quick and coordinated steps to cease operations and safeguard the safety of passengers and operators. It also facilitates the transfer of signals between the emergency stop buttons, the control system, and motor controllers.
