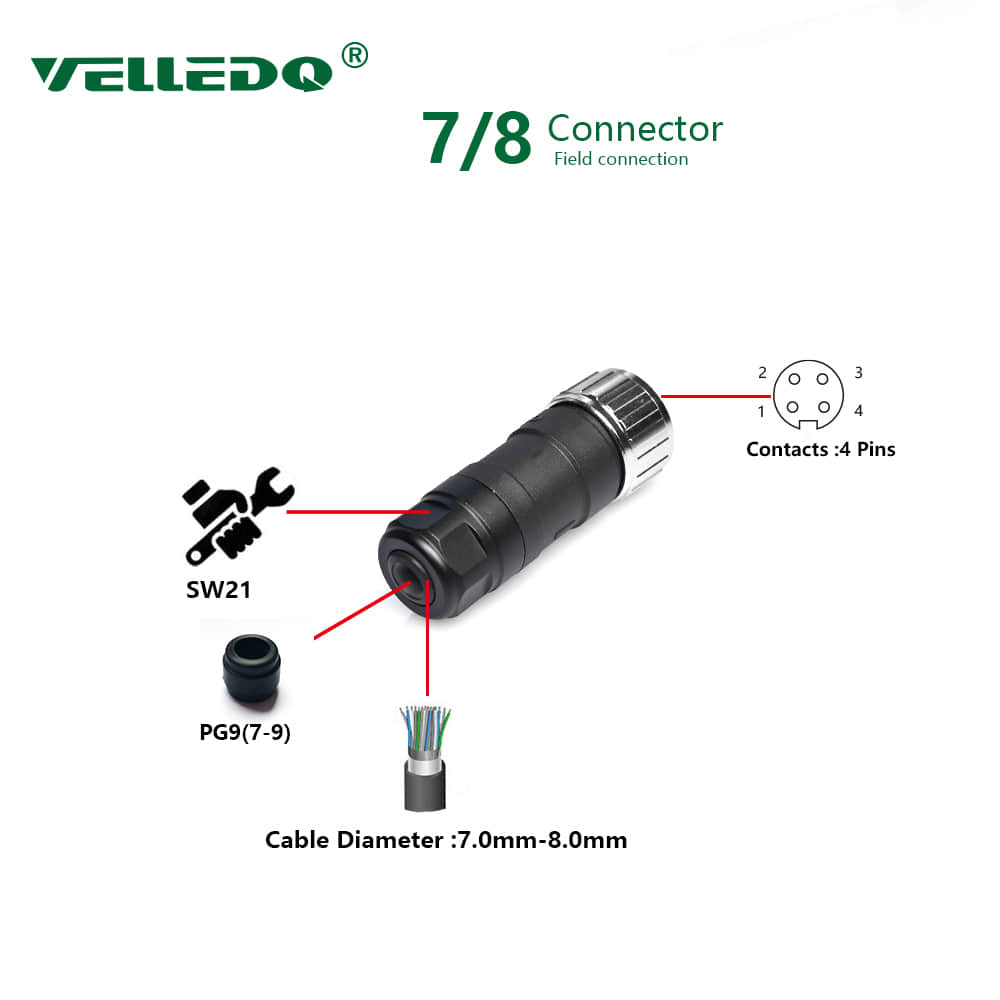

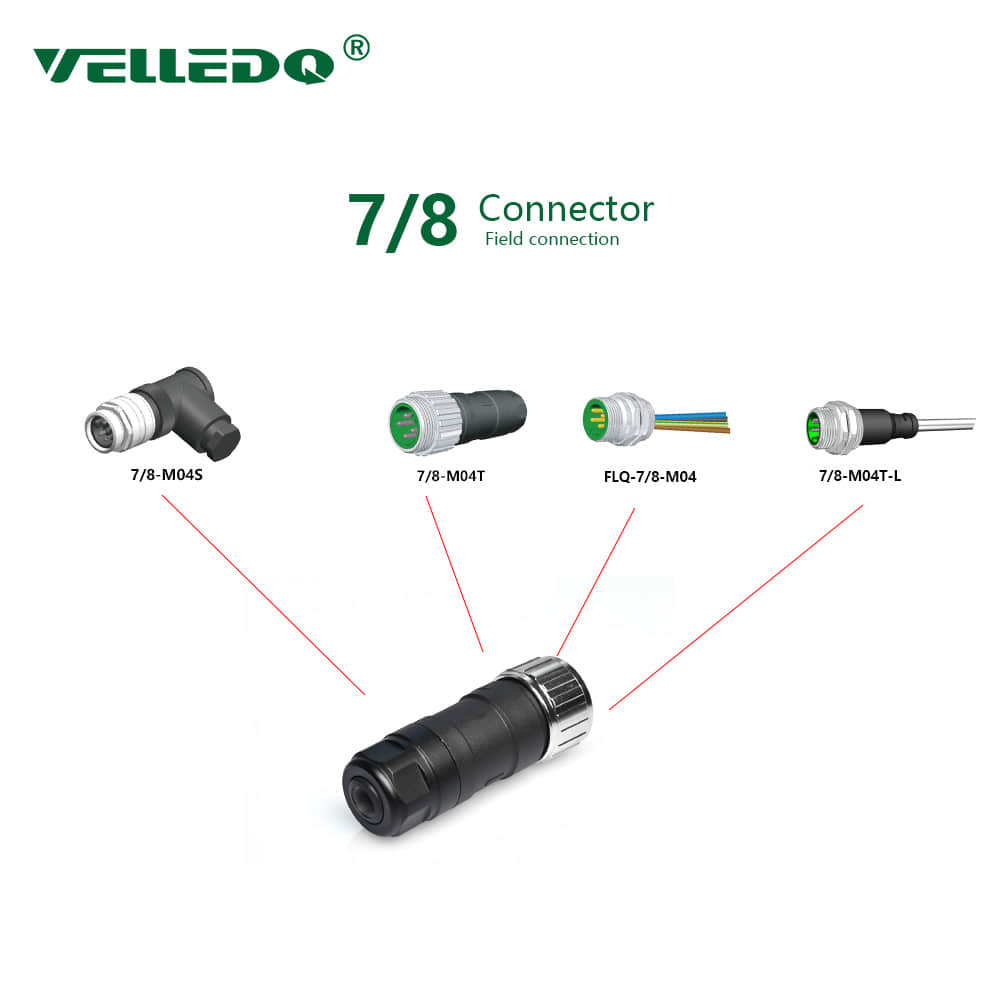

7/8 plug connector 3 core 4 core 5 core male/female plug sensor connector is a connector widely used in various fields, it can connect sensors, meters, computers and other equipment, to achieve data transmission and control. The connector has the characteristics of simple structure, strong durability, reliable contact, good protection, etc., so it is widely used in various industrial control, automotive electronics, medical equipment and other fields.
The main components of the 7/8 plug 3-core 4-core 5-core male and female plug sensor connector include two parts: plug and socket, wherein the plug includes internal and external wires, and the socket includes internal and external sockets. Through the contact between the plug and the socket, the transmission of signals and energy is realized, thus realizing the control and monitoring of various devices.
In the industrial field, 7/8 plug 3 core 4 core 5 core male and female plug sensor connectors are widely used in robots, automated production lines, CNC machine tools and other equipment sensor connection, control and data acquisition. In the field of automotive electronics, the connector is used in body electronics, in-vehicle entertainment, engine management and other aspects. In the field of medical devices, 7/8 connector 3-core, 4-core, 5-core male and female plug sensor connectors are used in the connection and data transmission of electronic sphygmomanometer, electrocardiograph, infusion pump and other equipment.
The advantages of the 7/8 plug 3 core 4 core 5 core male/female plug sensor connector are not only that it is durable and reliable in contact, but also that it can achieve waterproof, dustproof, anti-corrosion and other functions, so that it can be used in harsh working environments. In addition, the metal seal between the plug and socket can achieve a higher level of protection, ensuring the safety and reliability of the connector.
7/8 plug electrical connectors referred to as connectors, wiring terminals, is a subdivision of electronic components, mainly used for the connection between circuits. In industrial production, line connections can be said to be ubiquitous, so the use of connectors is of course very wide, used in various industries.
The correct selection and use of 7/8 plug electrical connectors is an important aspect of ensuring circuit reliability. The electrical parameters of the connector itself are the first issue to be considered when selecting the connector, and also include the safety parameters and mechanical parameters of the connector.

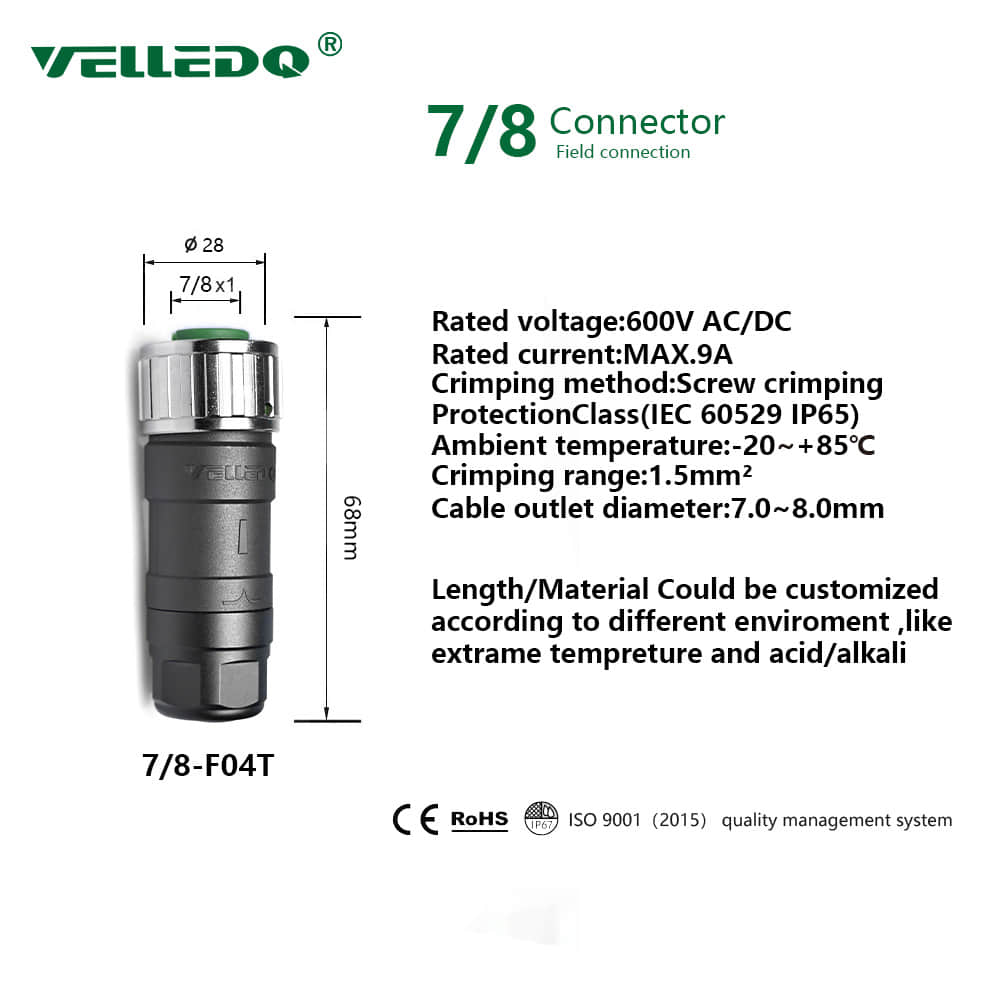

Rated voltage
Also known as the operating voltage, it mainly depends on the insulation material used in the 7/8 plug, and the size of the contact pair spacing. When some parts or devices are lower than their rated voltage, they cannot complete their intended functions.
Rated current
Also known as the operating current, the same as the rated voltage, below the rated current, the 7/8 plug can work normally. In the design process of the connector, the heat of the connector is designed to meet the requirements of the rated current, because when exposed to the current, due to the existence of conductor resistance and contact resistance, the contact pair will heat, when its heat exceeds a certain limit, it will destroy the insulation of the connector, forming a softening of the surface coating, resulting in failure. Therefore, 7/8 plug’s rated current is actually to limit the temperature rise inside the connector to not exceed the specified value of the design. Therefore, the multi-core connector should be reduced in use, and the more cores, the greater the reduction.
Contact resistance
Contact resistance refers to the resistance generated by two contact conductors in the contact part. The contact resistance of the 7/8 plug refers to the contact resistance, including the contact resistance and the contact conductor resistance.
Screening property
In modern electrical and electronic equipment, the increase in component density and related functions puts strict limits on electromagnetic interference.
Security parameter
Insulation resistance
Refers to the resistance value generated by applying voltage to the insulated part of the connector to generate leakage current on the active surface of the 7/8 plug’s insulated part. It is mainly affected by insulation materials, temperature, humidity, dirt and other factors.
Pressure resistance
It means that the critical voltage between the mutually insulated parts of the contact pair or between the insulated part and the ground can withstand higher than the rated voltage within a specified time, without damage. It is mainly affected by the geometry of contact spacing and climbing distance, insulation material, ambient temperature and humidity, and atmospheric pressure.
combustibility
The 7/8 plug is not only required to prevent fire, but also to self-destruct within a short time after fire.
Mechanical parameter
Single foot separation force and total separation force
The contact pressure in the 7/8 plug is an important indicator, which directly affects the size of the contact resistance and the amount of wear of the contact object.
Mechanical life
Connector life refers to the plug life, usually 500 to 1000 times.
Contact on number and pinhole properties
First of all, the number of contact pairs can be selected according to the requirements of the circuit, and the volume and total separation force of the connector should be taken into account.
Resistance to vibration, shock and collision
The main consideration is the electrical continuity of the connector under vibration, shock and collision under specified frequency and acceleration conditions.
Connection mode
The 7/8 plug is generally composed of a plug and socket, of which the plug is also called a free-end connector, and the socket is also called a fixed-end connector. Through 7/8 plug and separation of plugs and sockets, the connection and disconnection of circuits produce various ways of connecting plugs and sockets. For circular connectors, there are mainly threaded connections, bayonet connections and pin connections.
Terminal mode
The termination mode refers to the contact between the 7/8 plug and the wire or cable. Reasonable choice of termination mode and correct use of termination technology are also important aspects of the use and selection of connectors.
Waterproof 7/8 plug: A reliable guarantee for modern communications
With the development of modern communication field, people have higher and higher requirements for communication quality and reliability. When building a communication system, in order to ensure signal strength and stability, waterproof connectors are one of the key components. The Waterproof 7/8 plug is favored for its special design and performance advantages.
The Waterproof 7/8 plug provides outstanding protection with an internal O-seal and two fixed external O-seals. Through this three-channel waterproof protection, the waterproof level of the connector can reach IP67 level. This highly efficient waterproof performance can bring reliable and stable service to the communication system in complex climates and environments.
In addition, the design and material selection of the Waterproof 7/8 plug also ensure its stability and reliability. It uses materials such as zinc alloy, titanium alloy and stainless steel, so that the connector has high corrosion resistance and impact resistance, and can adapt to a variety of harsh environments.
It is worth mentioning that the Waterproof 7/8 plug also uses a quick disassembly design. The liquid silicone rubber material inside the connector ensures the seal between the connector and the cable, which greatly facilitates the construction and maintenance of the system. In addition, the Waterproof 7/8 plug also has UHF bandwidth, which can provide better signal transmission during high-speed data transmission.
In short, Waterproof 7/8 plug With the continuous development of modern communication technology, is becoming an increasingly important waterproof connector. Waterproof 7/8 plug has excellent performance in terms of performance and protection, and provides a reliable and stable guarantee for modern communication systems.

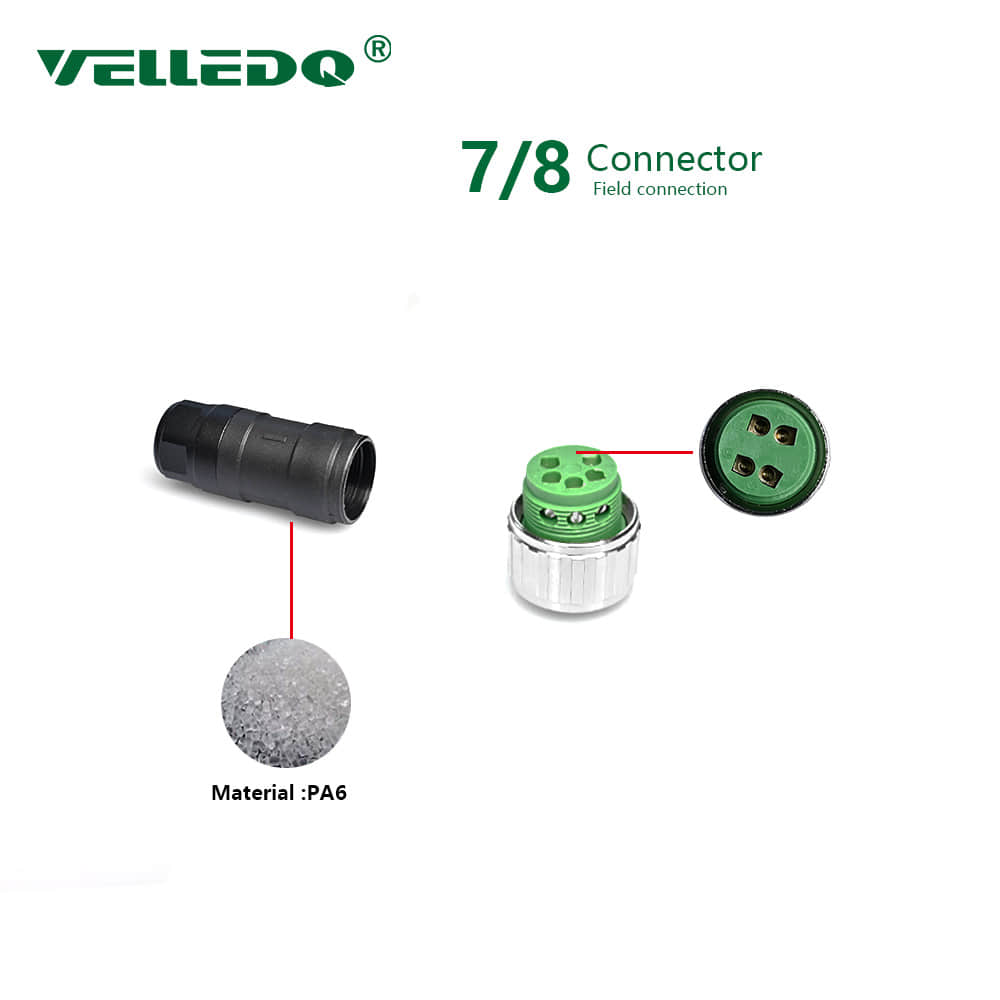

The 7/8 plug uses high-quality materials, including environmentally friendly metal materials and high-quality plastic materials, and is designed and manufactured in strict accordance with international standards during the manufacturing process to ensure its excellent performance. This 7/8 plug has high mechanical strength and electrical performance, can withstand high temperature, low temperature, high pressure, low pressure, strong radiation, humidity and other extreme environments, can ensure the normal operation of the aircraft in extremely harsh weather conditions.
