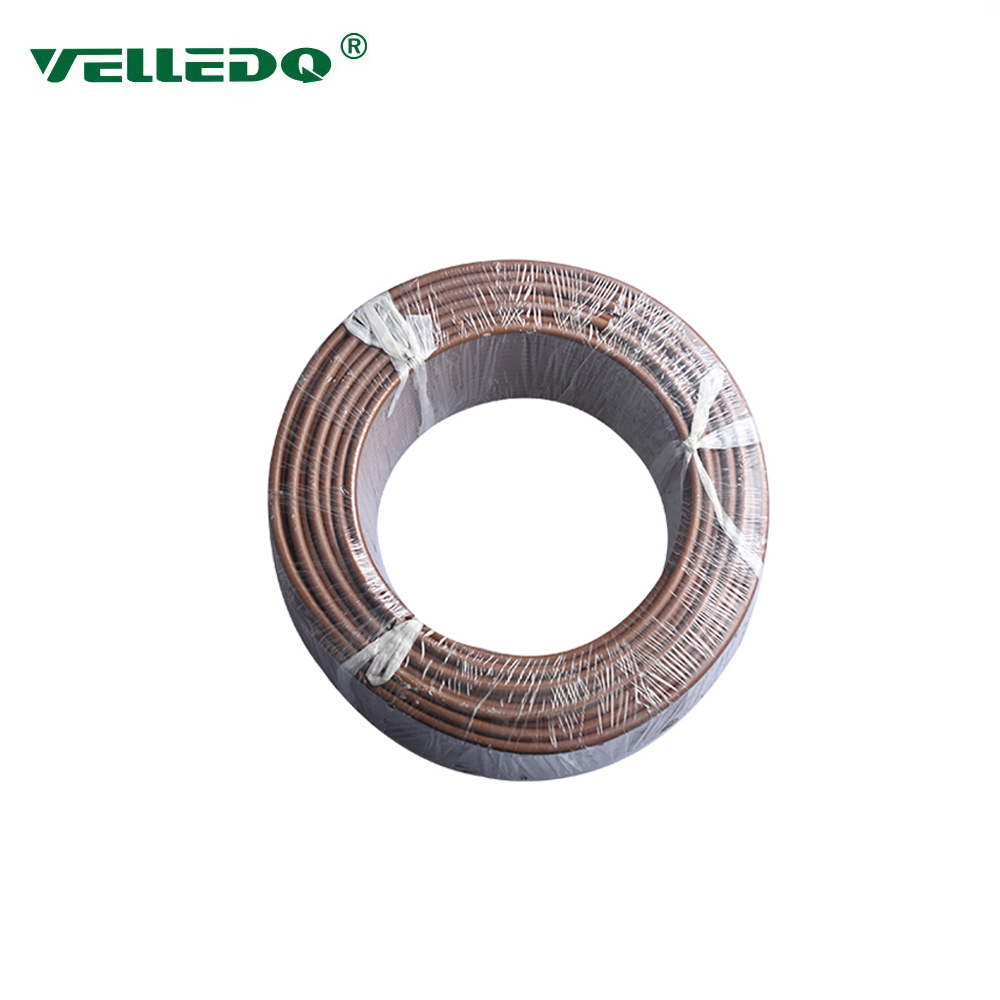

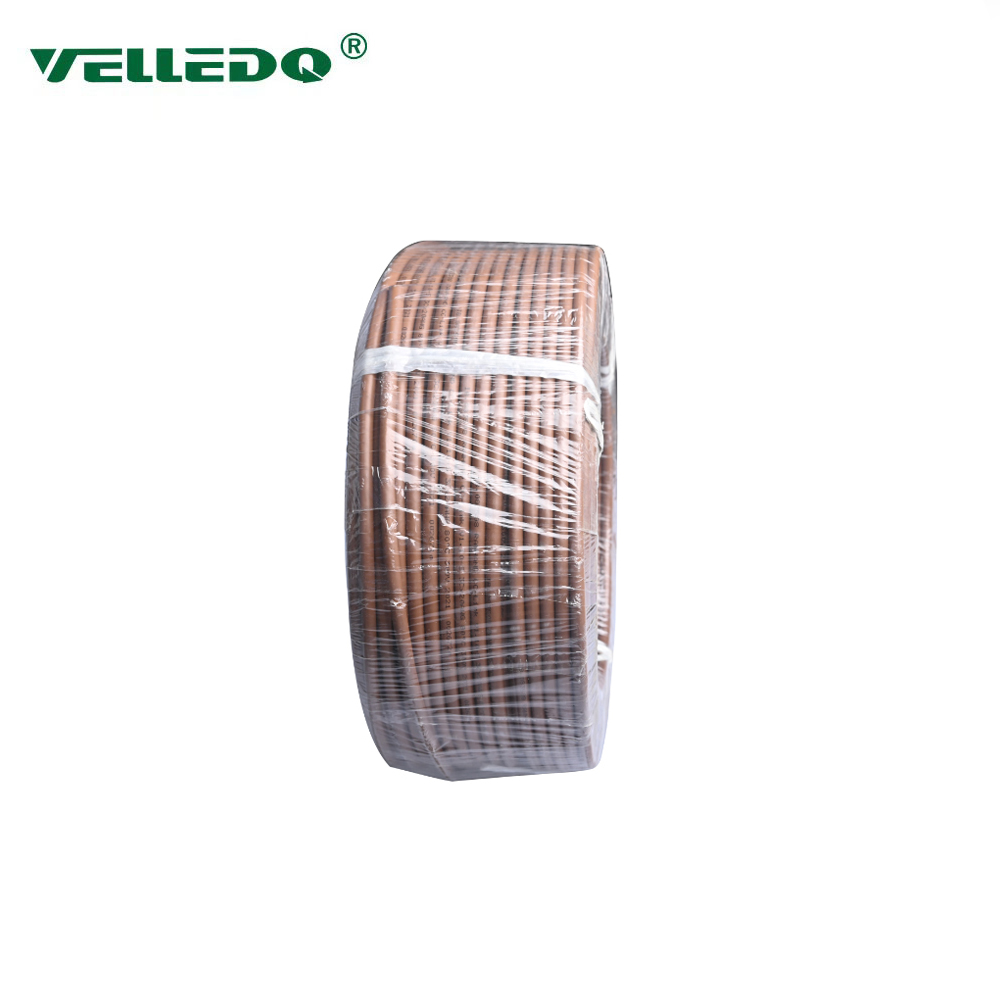

A popular industrial networking technology called CC Link, also called the Control and Communication Link, offers seamless communication and control in automation systems. Mitsubishi Electric Corporation created the open industrial networking technology known as CC Link. It offers a dependable and effective communication platform for integrating different automation devices into a system.Industries including industrial, automotive, and energy have used CC Link widely because it makes it easier for equipment to communicate data, control signals, and information.The physical foundation of a CC Link network, CC Link cable, provides dependable data transfer. The CC Link communication protocol is supported only via CC Link cable. The open industrial networking technology known as CC Link, sometimes called Control and Communication Link, offers real-time communication and control of devices inside an automation system.
The Features of CC Link
CC Link offers several key features that make it a powerful industrial networking technology.
1.High-Speed Communication: High-speed communication capabilities are provided by CC Link, allowing for quick and effective data transfer between devices. CC Link offers real-time control and synchronization of devices inside an automation system with data transmission speeds of up to 10 Mbps.
2.CC Link enables real-time control and synchronizatDeterministic Performance: By ensuring deterministic performance, CC Link makes sure that data transfer happens at a predictable and regular time. For applications like motion control or robotics that need exact synchronization and coordination, this is essential. The deterministic nature of CC Link enables precise and efficient device control, improving system performance.
3.Scalability and Flexibility: With its scalable and adaptable network design, CC Link enables a variety of devices and system setups. It enables the installation of new devices or the reconfiguration of existing ones without experiencing sizable disturbances, making network growth and change simple. Because of its versatility and scalability, CC Link may be used in both small- and large-scale automation systems.
4.Robust and Reliable Communication: CC Link is built to perform dependably in challenging industrial settings. It includes methods for error detection and repair to guarantee the integrity of sent data and reduce the possibility of communication breakdowns. Additionally, CC Link uses redundant network topologies to increase system stability and provide fault tolerance.
5.Open and Interoperable:Since CC Link is an open networking protocol, several manufacturers are free to create components and devices that function together. By offering consumers a variety of alternatives for device selection and system integration, this encourages interoperability. The openness of CC Link promotes creativity, rivalry, and compatibility among many providers, eventually helping end users.
Advantages of CC Link
CC Link offers several advantages over traditional fieldbus systems and other industrial networking technologies:
- Seamless Integration: Device integration inside an automation system is made simpler by CC Link. By offering a standardized communication interface, it promotes compatibility and interoperability among diverse devices from various vendors. By making connecting and configuring devices easier, less time and effort is required during installation.
- High Performance: Device control is made possible by the predictable performance and high-speed connectivity of CC Link. Even in applications that need quick reaction times and high-speed data transfer, it allows real-time data interchange, enabling accurate coordination and synchronization.
- Cost-Effective Implementation: CC Link provides economical industrial networking solutions. Standard Ethernet cables and components save implementation costs since they do not require specialist wiring or equipment. Additionally, without the need for substantial rewiring, CC-Link’s scalability and flexibility enable effective system extension and change.
- Comprehensive Device Support: PLCs, HMIs (Human-Machine Interfaces), robotics, sensors, and actuators are just a few of the many devices that are supported by CC Link. This extensive device compatibility makes it possible for various automation components to be seamlessly integrated into a single system. As all devices can be managed and monitored through a single network, it also makes maintenance and troubleshooting simpler.
The Significance of CC Link and CC Link Cable
CC Link plays a significant role in enhancing industrial networking and automation systems:CC Link cable play a crucial role in enabling reliable and robust communication within CC Link networks.
1.Improved Efficiency: Within an automation system, CC Link offers effective data interchange, control, and coordination amongst devices. This increases productivity, lowers downtime, and overall system efficiency. Accurate monitoring, control, and optimization of industrial processes are made possible by real-time communication and predictable performance.
2.Enhanced Flexibility: System extension, modification, and reconfiguration are made simple by CC Link’s scalability and adaptability. Without affecting the whole network, new devices may be added or withdrawn, enabling smooth response to shifting production requirements. In industrial settings, this flexibility fosters agility and reactivity.
3.Interoperability and Standardization: The openness of CC Link encourages compatibility and uniformity across many suppliers and gadgets. As a result, users have the opportunity to select from a variety of CC Link-compatible devices and components, which promotes cooperation and compatibility. System integration is made easier, complexity is decreased, and long-term supportability is encouraged through standardization.
4.Future-Proofing: In order to keep up with the evolving needs of industrial automation, CC Link keeps developing and adapting. Continuous improvements and upgrades guarantee that CC Link is a cutting-edge and reliable industrial networking solution. This gives users assurance that their investments in automation will last and be sustainable.
5.Reliable Data Transmission: A dependable data communication between components of an automation system is ensured by CC Link cable.
To ensure high-quality communication and lower the chance of data loss or corruption, it is best to utilize twisted pairs, individual insulation, and shielding to reduce electromagnetic interference and crosstalk.
6.Real-Time Performance: Real-time communication and device control are made possible within an industrial automation system using CC Link cable and the CC Link protocol. The exact synchronization and coordination of devices is made possible by the low latency and high-speed data transmission capabilities of CC Link cable, enabling precise control and prompt answers.
7.Compatibility and Interoperability: In order to guarantee compatibility and interoperability between devices made by various manufacturers, CC Link cable comply to industry standards. This lessens compatibility problems while promoting flexibility in device selection, integration, and future expansions.
8.The wiring process may be sped up with the use of standardized connections and cables, which lowers the cost of installation time and labor. Additionally, the CC Link cable’s robust design and protective sleeve increase its endurance and life, lowering the frequency of replacement and maintenance needs.
9.Scalability and Expandability: A scalable and extendable network architecture is supported by CC Link cable. The network’s simplicity makes it possible to add or remove devices without affecting the system as a whole, allowing for flexible and effective system expansion or alterations in response to changing automation requirements.
It is possible to communicate and operate devices in automation systems with ease thanks to the potent industrial networking technology known as CC Link. The system efficiency, flexibility, and dependability of CC Link are improved by its high-speed connectivity, predictable performance, scalability, and interoperability. Its value in industrial networking is derived from its capacity to enhance communication, provide real-time control, support a variety of devices, and foster standardization and interoperability. As we go toward smarter, more connected factories, CC Link will continue to play a significant part in improving industrial automation systems.Within CC Link networks, CC Link cable plays a crucial role in allowing dependable and strong industrial communication. High-quality data transmission is ensured and the possibility of signal deterioration or interference is reduced because to the twisted pairs, insulation, shielding, and protective jackets that make up their construction. CC Link cable is a key enabler for successful and efficient industrial communication because of its considerable contribution to improving the connection, synchronization, and overall performance of industrial automation systems.
